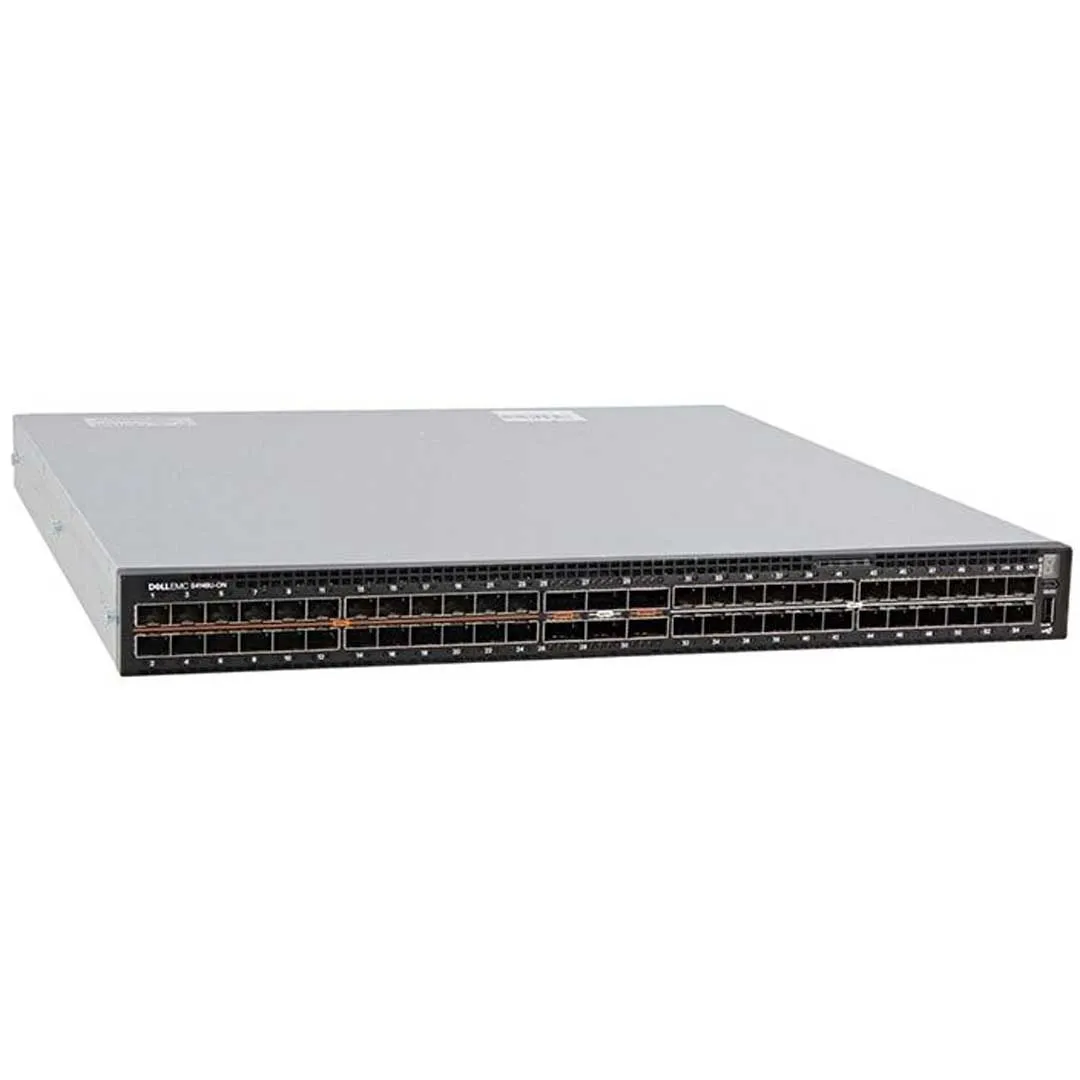

The Dell EMC PowerSwitch S4148U-ON Switch is a versatile and high-performance network switch that provides reliable and efficient connectivity for modern data center environments. With 24 10G unified Fibre Channel and Ethernet SFP ports, 24 10G Ethernet SFP ports, two 40G Ethernet QSFP ports, and four 100G unified Fibre Channel and Ethernet QSFP28 ports, this switch offers exceptional flexibility and scalability for your network needs.
One of the key features of the PowerSwitch S4148U-ON is its high bandwidth capabilities. The switch is capable of delivering up to 1.92 Tbps of throughput, ensuring that your network is capable of handling high traffic loads with ease. It is designed to support the latest network protocols, including 25GbE and 100GbE, ensuring that your network is ready for the future.
The PowerSwitch S4148U-ON is also built to provide superior reliability and uptime. It features advanced power management capabilities that allow you to monitor and control your power usage, ensuring that your network is always operating at peak efficiency. The switch is also designed to operate with a low power consumption, which can help to reduce your overall energy costs.
Another key feature of the PowerSwitch S4148U-ON is its support for both Fibre Channel and Ethernet protocols. The switch features both unified Fibre Channel and Ethernet ports, making it a great choice for organizations that require both protocols for their storage and networking needs.

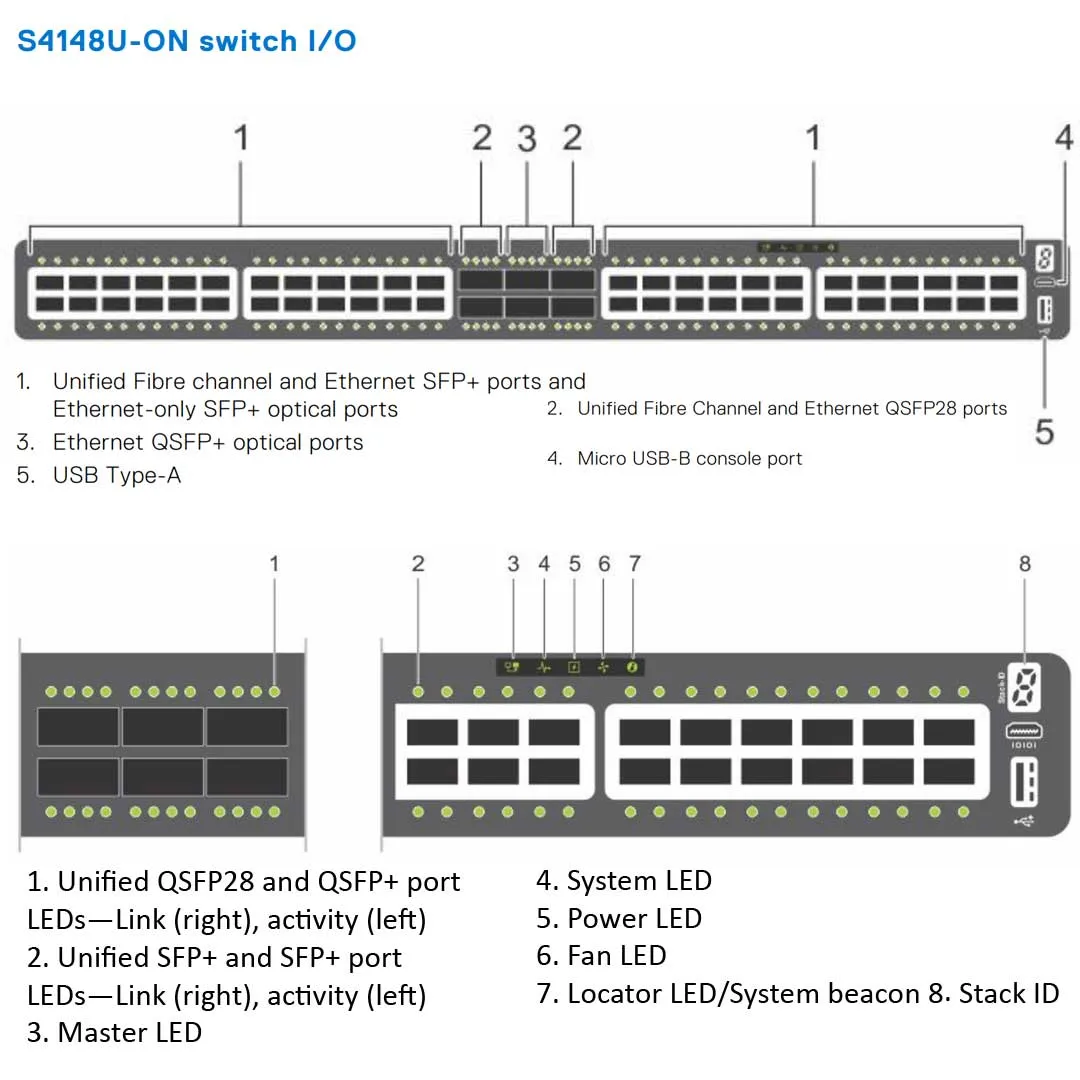

- Open Network Install Environment (ONIE)
- 24 fixed unified Fibre channel or Ethernet SFP optical ports
- 24 fixed Ethernet SFP optical ports
- 2 fixed Ethernet QSFP optical ports
- 4 fixed unified Fibre channel or Ethernet QSFP28 optical ports
- 460W Max Power Consumption
- 300W Typical Operating Power
- 4 Hot-Swappable Fans
S4148U-ON Configurations:
- 24 x 10G 24 x FC8 4 x 100G
- 24 x 10G 24 x FC16 4 x 100G All FC16 are oversubscribed
- 24 x 10G 12 x FC16 4 x 100G All FC16 linerate
- 24 x 10G 40 x FC8 2 x 40G
- 24 x 10G 40 x FC16 24 out of 40 FC16 are oversubscribed
- 24 x 10G 28 x FC16 All FC16 linerate
- 24 x 10G 12 x FC16 16 x FC32 All FC32 are oversubscribed
- 48 x 10G 4 X 100G
- 48 x 10G 6 x 40G
- 48 x 10G 8 x 50G
- 48 x 10G 16 x 25G
- 72 x 10G

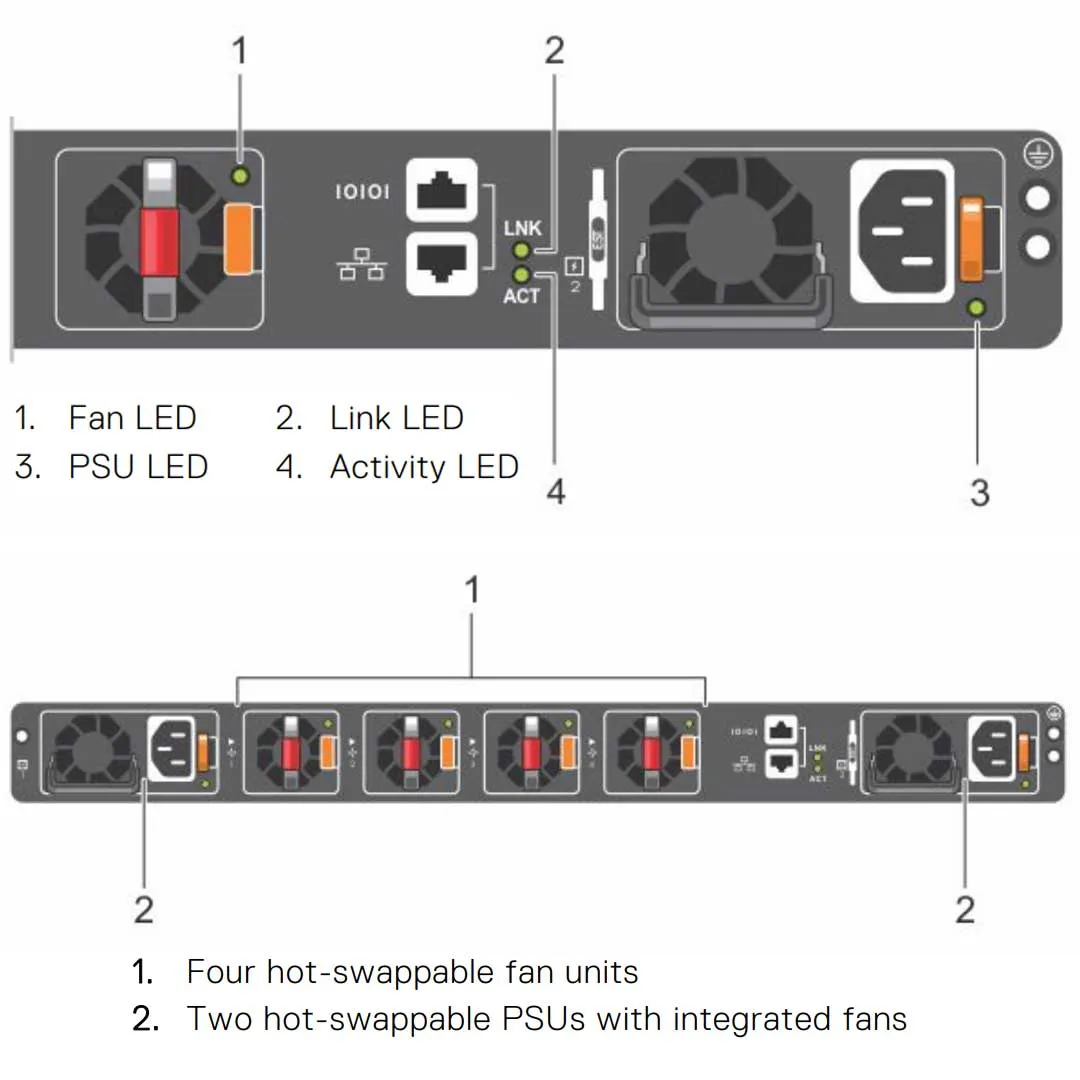

S4148U-ON AC or DC Normal airflow
- 4 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal
- AC power supply with airflow from the I/O side to the PSU side—normal
- DC power supply with airflow from the I/O side to the PSU side—normal
S4148U-ON AC or DC Reverse airflow
- 4 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse
- AC power supply with airflow from the PSU side to the I/O side—reverse
- DC power supply with airflow from the PSU side to the I/O side—reverse
Key Features with Dell EMC SmartFabric OS10
- Consistent DevOps framework across compute, storage and networking elements
- Standard networking features, interfaces and scripting functions for legacy network operations integration
- Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
- Pervasive, unrestricted developer environment via Control Plane Services (CPS)
- OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
- OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
- Leverage common open source tools and best practices (data models, commit rollbacks)
- Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
- Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
- Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
- Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
- Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV
